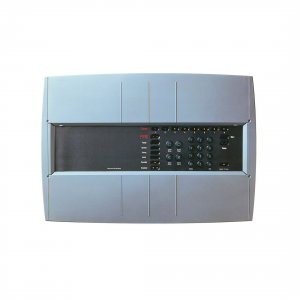

SMS FP585 4 Zone Conventional Control Panel

Description

The FP585 panel complies fully with the European standard EN54 Parts 2 & 4 and can be used on installations meeting BS 5839: Part 1.

Each panel contains its own integral power supply and battery support for up to eight alarm sounder circuits, two auxiliary relay contacts, a zone disablement facility and a one man test and commission facility, all simplifying system design, installation and commissioning.

Technical Specification

Number of Zones:  4

Maximum Load Per Zone:  3mA

No. of Sounder Circuits: 4

Max. Sounder Circuit Load: 0.5A per circuit (Total Load Not To Exceed 1A)

Batteries (not included): 2 x 12V 2.1Ah or 2 x 12v, 3.4Ah

Battery Standby (Using batteries specified above): 72 Hours plus 0.5 Hours Alarm Load

Aux. Relay Contacts: 1 N/O and 1 N/C Pair, 1A at 24V

Approx Weight (with batteries): 5.8Kg

Cable Entry: 13 Top and 13 Rear

Cable Type: BS 6387, 2 Core, min 1.5mm Square CSA

Class Change Facility: Via normally open push button switch located no more than 100m from panel

Temperature: Indoor, 0 – 40 Degrees Celcius

Standards: EN54 Parts 2 and 4

Approvals: BSI approved
