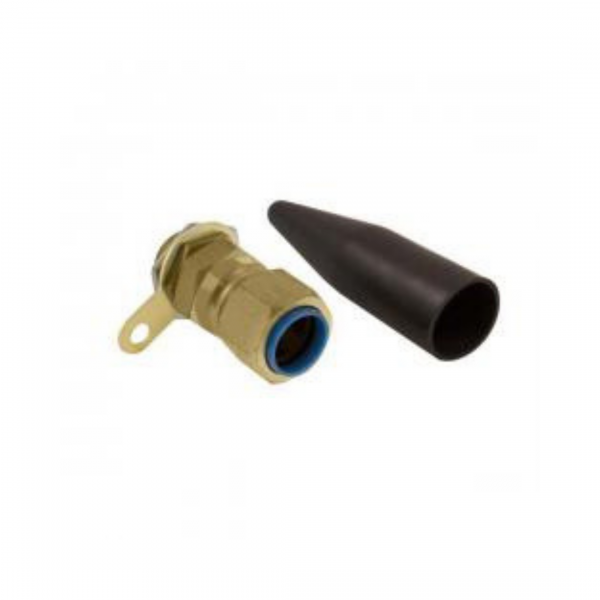

CW Brass Armoured Gland 20mm – S
- Tested and approved to BS6121 Pt1
- Manufactured in cast brass to BS2874
- Supplied in kit form with Shrouds, Earth Tags & Steel Locknuts
- Standard 1.5mm Thread Pitch
- Pack of 2
- Description
- Reviews (0)
Description
CW type brass indoor and outdoor cable glands are ideal for use with all types of Single Wire Armour (SWA) cable, providing seal on the cable outer sheath. The cable gland also provides mechanical cable retention and electrical continuity via armour wire termination. A detachable armour cone and clamping ring arrangement allows the cable to be easily disconnected from the equipment, for maintenance and replacement.

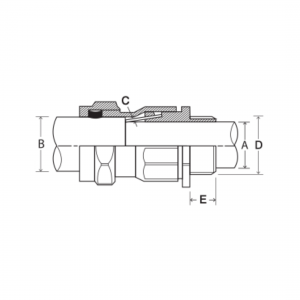

Technical Specification
Gland Size (D): 20S
Entry Thread (E): 10mm
Cable Dia. Max (A): 11.6mm
Cable Dia. Max (B): 11.4/15.9mm
Armour Wire Dia. (C): 0.9/1.25mm
Pack Qty: 2
