Fire-Safe 25mm Trunking Cable Clips (Pack of 10)

Fire-Safe 40mm Trunking Cable Clips (Pack of 10)
0 out of 5

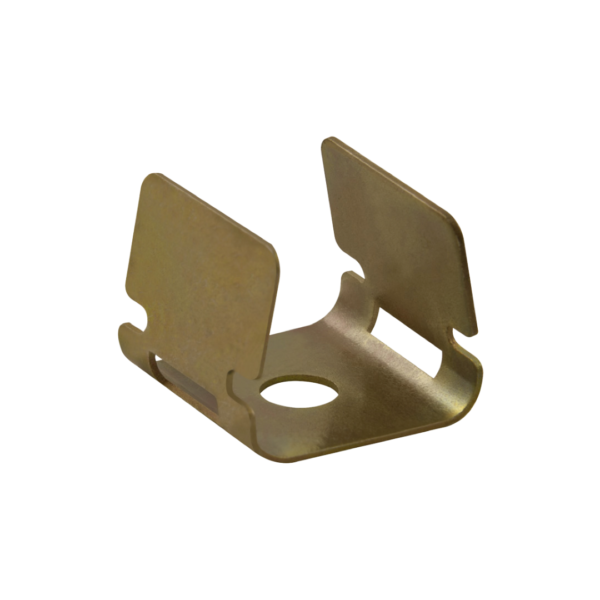

25mm Fire Safe Cable Clips

  • Material: Annealed Steel
  • Trunking Width: 25mm
  • Material Yield Temperature: 1000°C+
  • Fire Rating: 120 Minutes (2 Hours)
  • Unicrimp brand
SKU: QFGFC25 Categories: ,

Description

Additional Information

Fire Safe Cable Clips are non-corrosive annealed steel cable clips that have been designed to secure all surface cables directly to the wall, with the easy fold tabs keeping cable secure. When used with appropriate fixings, the Fire Safe Cable Clips can securely hold cables on a surface at 930°C (+40° – 0°) for at least 2 hours.

During this testing procedure, the cable was simultaneously exposed to a flame at the aforementioned temperature and mechanical shock for 60 minutes, followed by simultaneous exposure to water spray and mechanical shock for a further 60 minutes.

Standards

  • BS 5839-1:2013 (Section 26.2e)
  • BS 8434-2 :2003
  • BS EN 50200:2006 PH120

Directives

  • RoHS 2: 2011/65/EU & RoHS 3: 2015/863/EU
  • REACH: 1907/2006/EU
