Fire-Safe 50mm Trunking Cable Clips (Pack of 10)

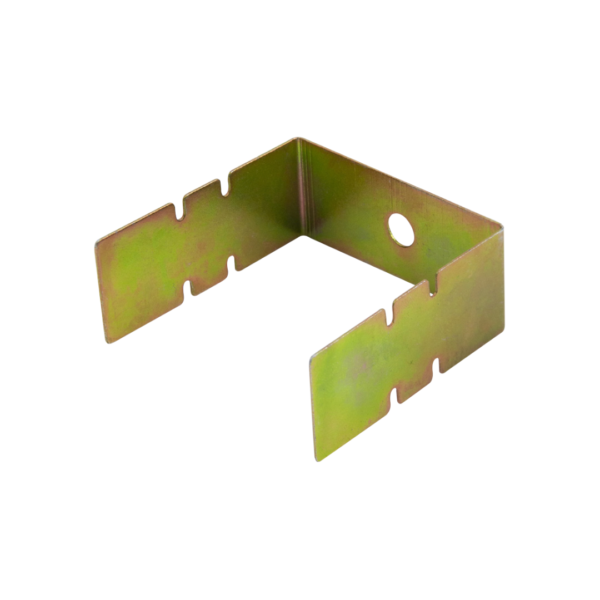

50mm Fire Safe Cable Clips
- Material: Annealed Steel
- Trunking Width: 50mm
- Fold Height: 30mm Max.
- Material Yield Temperature: 1000°C+
- Fire Rating: 120 Minutes (2 Hours)
- Unicrimp brand
- Description
Description
Additional Information
Fire Safe Cable Clips are non-corrosive annealed steel cable clips that have been designed to secure all surface cables directly to the wall, with the easy fold tabs keeping cable secure. When used with appropriate fixings, the Fire Safe Cable Clips can securely hold cables on a surface at 930°C (+40° – 0°) for at least 2 hours.
During this testing procedure, the cable was simultaneously exposed to a flame at the aforementioned temperature and mechanical shock for 60 minutes, followed by simultaneous exposure to water spray and mechanical shock for a further 60 minutes.
With a folding height of 30mm maximum enables air circulation within 50mm x 50mm trunking.
Standards
- BS 5839-1:2013 (Section 26.2e)
- BS 8434-2 :2003
- BS EN 50200:2006 PH120
Directives
- RoHS 2: 2011/65/EU & RoHS 3: 2015/863/EU
- REACH: 1907/2006/EU
