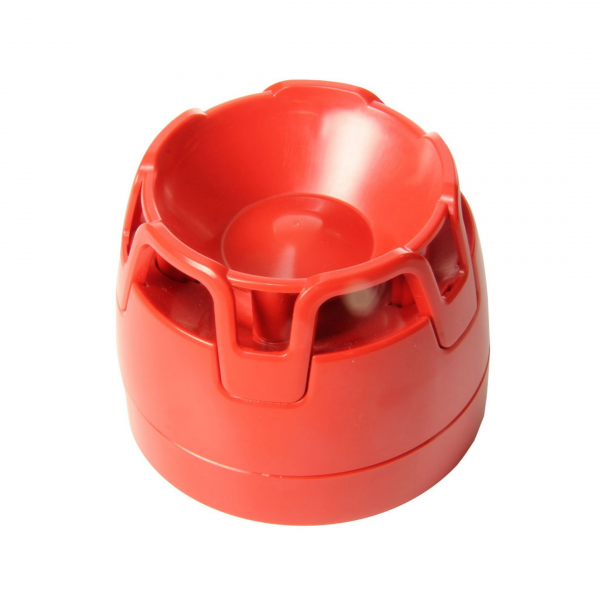

Red Sounder with Low Profile Base - Image 1

Red Sounder with Low Profile Base

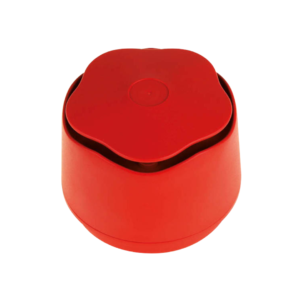

Red Banshee Excel Sounder (87-112 dba)
0 out of 5
( There are no reviews yet. )

Features:

  • Approved to EN54-3
  • Suitable for wall and ceiling mount applications
  • Superior sound output and low current consumption
  • 32 tones all approved to EN54-3
  • Adjustable volume settings
  • Two stage sounders enable alert and alarm sequences to be set for phased evacuation
  • Synchronised sound output
SKU: CWSO-RR-S1 Category:

Description

Red EN54-3 approved low profile wall and ceiling mount sounder. Low profile base included.

Technical Specification

Electrical

Operating Voltage: 9 to 29VDC (Approved to EN54-3 @ 9-14V and 18-29V)

Average current consumption: 31mA @ 29VDC (Tone 8)

Maximum Sound Output: 107dB (A) @ 1m (Tone 23)

Environmental

Operating Temperature: -25°C to 70°C

Relative Humidity: 93% ±3% non condensing

Ingress Protection: IP21C – low profile base

Mechanical

Body colour: Red

Number of Tones: 32 includes a bell tone

Volume Setting: High or medium

Cable Termination Size: 0.5 – 2.5mm2

Material: Flame retardant PC/ABS
