Wago 2 Conductor Lighting Connector (Box of 100)

Description

Technical Specification

Rated voltage (II / 2): 400V

Rated impulse voltage (II / 2): 4 kV

Rated current: 24A

Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2

Connection type: (1): Installation side

Connection technology: PUSH WIRE®

Actuation type: Push-in

Connectable conductor materials: Copper, Aluminium

Solid conductor: 1 … 2.5 mm2 / 14 … 12 AWG

Strip length: 9 … 11 mm / 0.35 … 0.43 inch

Connection type (2): Lighting Side

Connection technology (2): CAGE CLAMP®

Number of connection points: 1

Solid conductor (2): 0.5 … 2.5 mm2 / 20 … 16 AWG

Fine-stranded conductor (2): 0.5 … 2.5 mm2 / 20 … 16 AWG

Total number of connection points: 2

Total number of potentials: 1

Type of wiring: Side-entry wiring

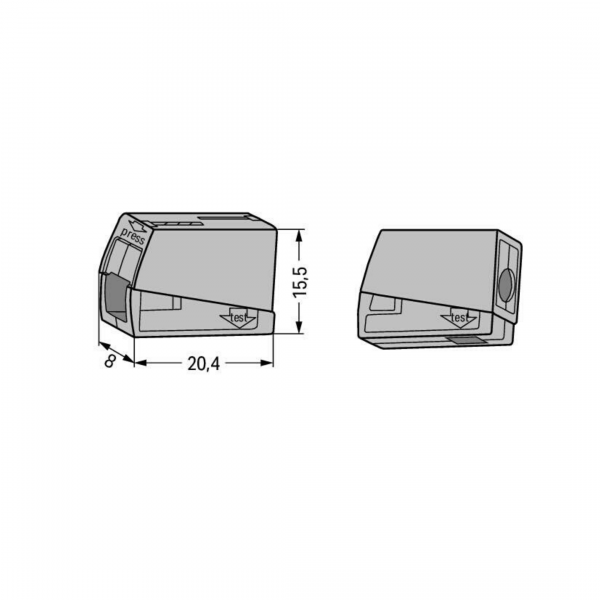

Width: 8 mm / 0.315 inch

Height: 15.5 mm / 0.61 inch

Depth: 20.4 mm / 0.803 inch

Colour: Grey

Fire load: 0.041 MJ

Weight: 2.128 g

Continuous operating temperature: 105 °C
