Wago 2 Lever Splicing Connector (Box of 50)
CLASSIC Splicing Connector; for all conductor types; max. 4 mm2; 2-conductor; with levers; grey housing; Surrounding air temperature: max 40° C; 2,50 mm2; grey
Qty: Box of 50
- Description
- Reviews (0)
Description
Technical Specification
Rated voltage (II / 2): 400V
Rated impulse voltage (II / 2): 4 kV
Rated current: 32A
Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2
Connection technology: CAGE CLAMP®
Actuation type: Lever
Connectable conductor materials: Copper
Solid conductor: 0.08 … 2.5 mm2 / 28 … 12 AWG
Stranded conductor: 0.08 … 2.5 mm2 / 28 … 12 AWG
Fine-stranded conductor: 0.08 … 4 mm2 / 28 … 12 AWG
Strip length: 9 … 10 mm / 0.35 … 0.39 inch
Total number of connection points: 2
Total number of potentials: 1
Type of wiring: Side-entry wiring

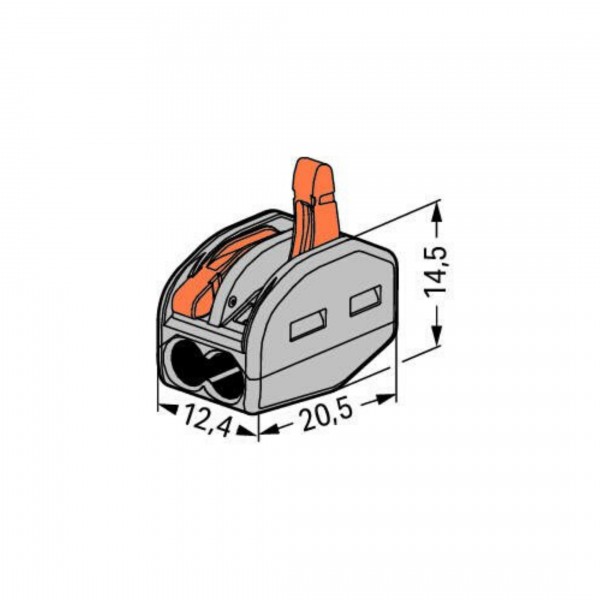

Width: 12.4 mm / 0.488 inch
Height: 14.5 mm / 0.571 inch
Depth: 20.5 mm / 0.807 inch
Colour: Grey
Flammability class per UL94: V0
Fire load: 0.067 MJ
Weight: 3.053 g
Surrounding air (operating) temperature: 40 °C
Continuous operating temperature: 85 °C
