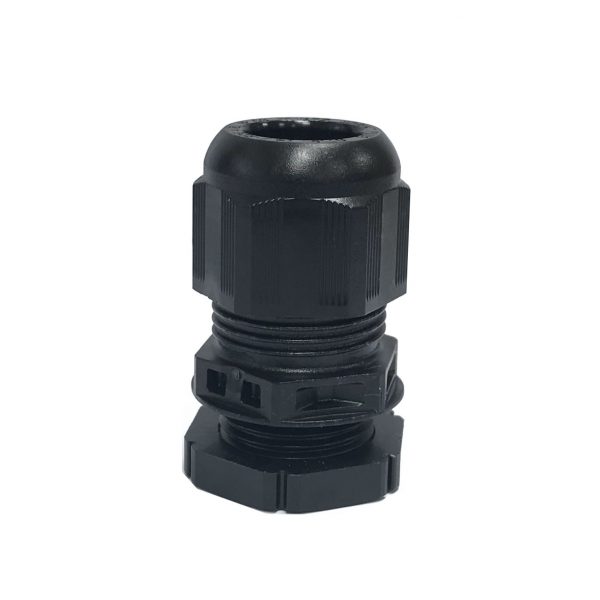

20mm Cable Gland With Locknut Black

Description

Technical Specification

Material Cable Gland: Polyamide

Material sealing gasket: EPDM

Temp. range min: -40 °C

Temp. range max: 100 °C

Protection class: IP69, IP68 (5 bar 30 min)

Thread type: M

Ø Connection thread D: 20

Lead: 1.5

Length screw-in thread L: 10mm

Ø cable diameter min: 7.5mm

Ø cable diameter max: 14mm

Key width SW: 24mm

Collar diameter (E): 27mm

Total length TL: 36mm – 45mm

Glow wire test: 750 °C

Type of cable anchorage: A

Install. torques fitting: 4 N/m

Install. torques cap nut: 3 N/m

Product Color: RAL 9005

Brand: Wiska UK Ltd
