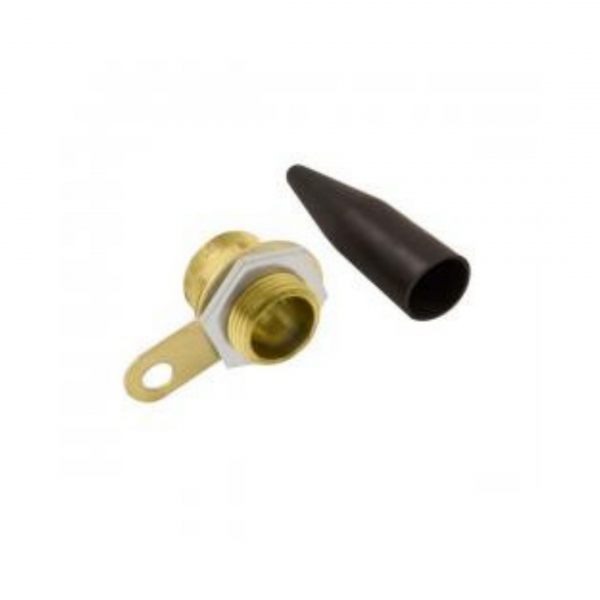

BW Brass Armoured Gland 25mm

BW Brass Armoured Gland 20mm – S
20mm Cable Gland With Locknut Black
0 out of 5
( There are no reviews yet. )

  • Tested and approved to BS6121 Pt1
  • Manufactured in cast brass to BS2874
  • Supplied in kit form with shrouds, earth tags & steel locknuts
  • Standard 1.5mm thread pitch
  • Pack of 2
SKU: QBW25 Categories: , , ,

Description

BW type brass indoor cable glands are ideal for use with all types of Single Wire Armour (SWA) cable providing mechanical cable retention and electrical continuity via armour wire termination.

Technical Specification

Gland Size (D): 25

Entry Thread (E): 10mm

Cable Dia. Max (A): 19.9mm

Cable Dia. Max (B): 27.4mm

Armour Wire Dia. (C): 1.25/1.6mm

Pack Qty: 2
